Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer
Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer
اکنون تماس بگیرید

Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer

مقدار حداقل تعداد سفارش : 1000 عدد قیمت : USD0.06-USD0.50/pc
جزئیات بسته بندی : کارون، پلی بگ زمان تحویل : 5-15 روز
شرایط پرداخت : T/T، L/C، D/P، Western Union، PayPay قابلیت ارائه : 20000 عدد در روز
محل منبع: چین نام تجاری: Share Filters
گواهی: REACH شماره مدل: لوله فلتر فلتر پلی استر با جوش فوق صوت

اطلاعات تکمیلی
نام محصول: لوله فلتر فلتر پلی استر با جوش فوق صوت کلمات کلیدی: فیلتر آب لوله مشبک
گزینه مش: شبکه فیلتر نایلون، شبکه فیلتر پلی استر، شبکه پی پی رتبه بندی میکرون: 5μm-300μm
روش ساختگی: جوش، برش و برش سونیک نوع جوش: با هم تداخل دارند
استحکام درز: با توجه به نیاز مشتری درخواست: برای تصفیه آب، استفاده مستقیم یا فیلتر قالب گیری تزریقی
فرم محصول: مش فیلتر در رول ها، ورق ها، لوله ها

توضیحات محصول



Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer



Share Filters not only offers a wide range of specifications of filter mesh in rolls, we also process these filter meshes into all kinds of filter components, like mesh ribbon, mesh shapes, mesh bags, mesh tubes and mesh insert plastic filters.

The filter mesh can be cut and welded into tube configurations by laser cut and ultrasonnic welding. With our heat and ultrasonic slitting and cutting technologies, we can create mesh tubes equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. These mesh shapes and tubes are convenient for custom injection moulding.





Technical Data



Product Name: Welded filter mesh tube for water filtrition
Material Options: Monofilament woven nylon filter mesh, polyester filter mesh
Mesh Opening: From 3 micron to 200 micron
Thread Diameter: From 30 micron, 120 micron
Open Area: From 1% to 46%
Weave Type: Plain weave, twill weave
Seam Type: One seam, double seams
Dimension: Can be tailored to custom shape or dimension
Colour: White, or customize





Product Details

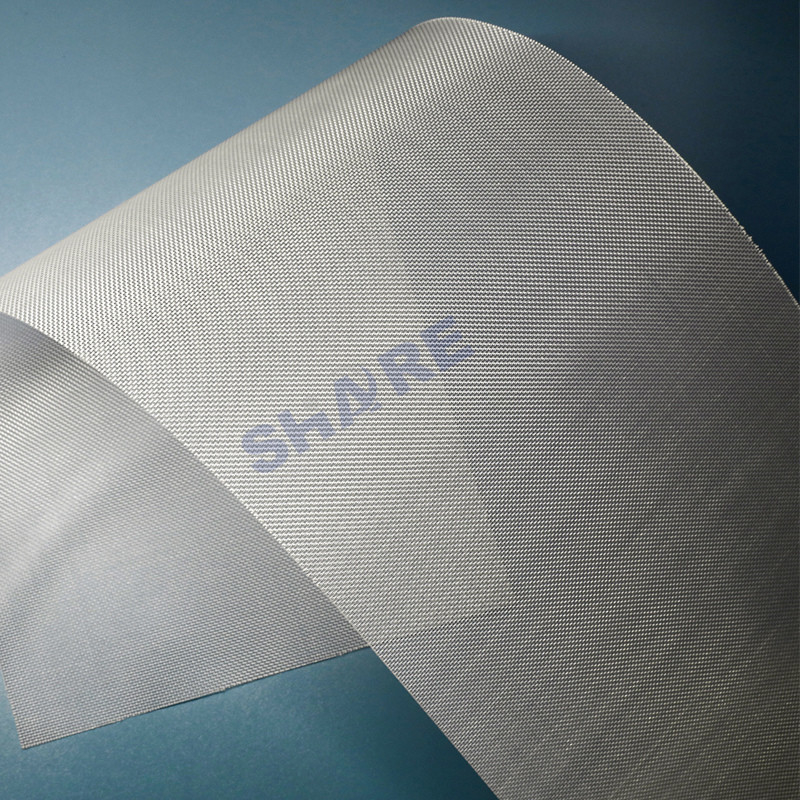

Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 0 Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 1

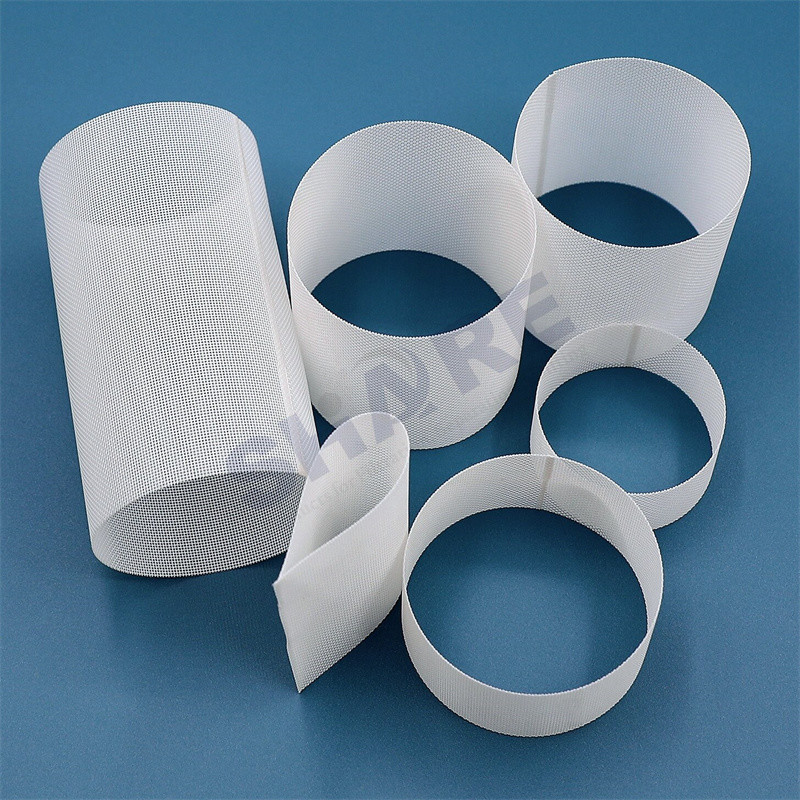

Filter mesh tube Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 3

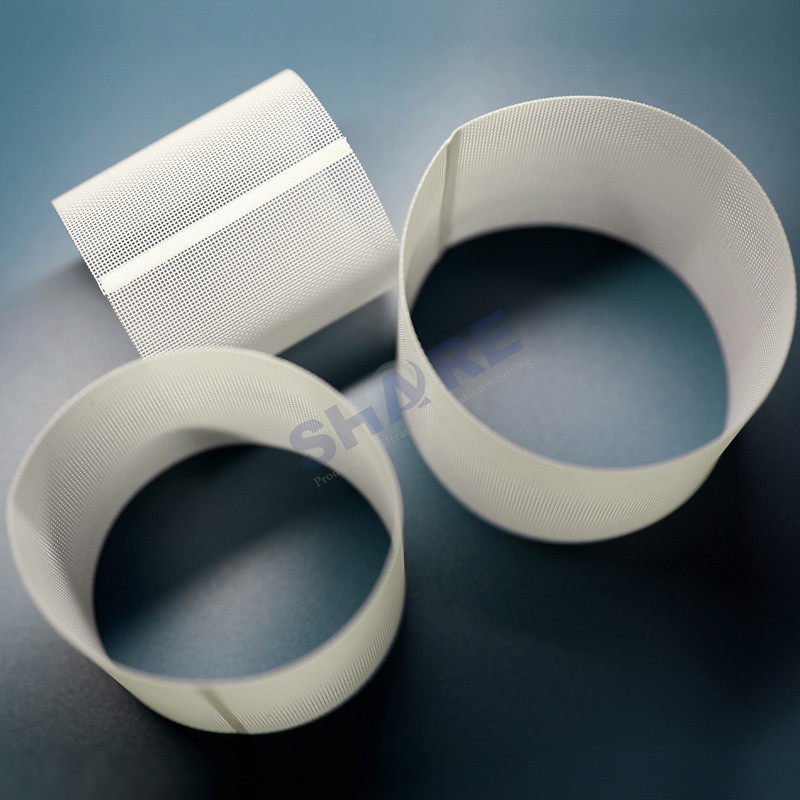

mesh tube Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 5

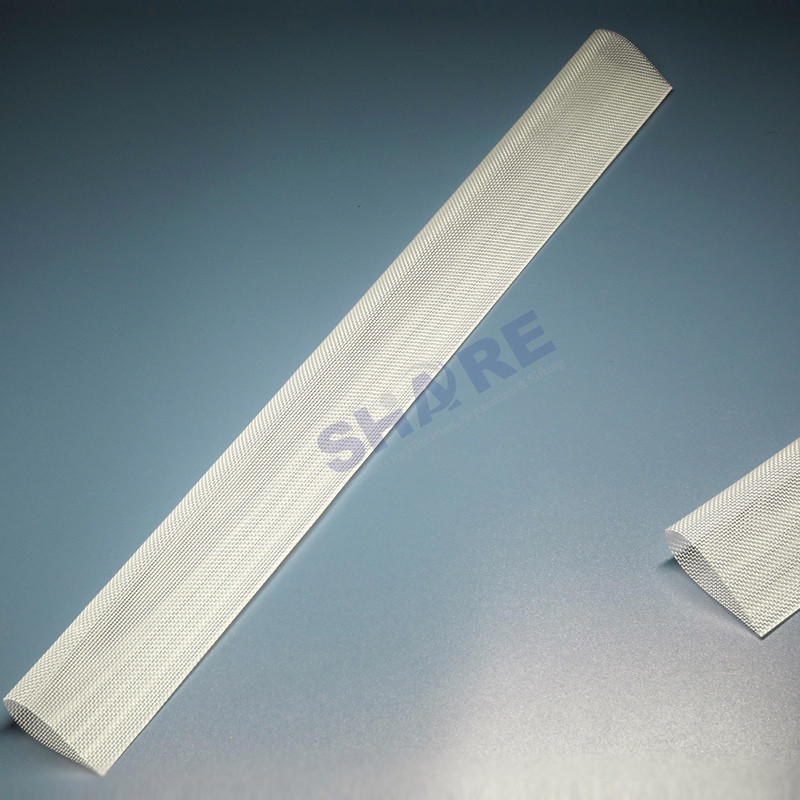

mesh tube ribbon filter mesh continuous tube

Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 8 tubular filter





Benefits from Pre-cut Filter Mesh Tubes:

  • Wide range of filter mesh and micron ratings are available
  • Dimensions specific to the customer’s design needs
  • Two kinds of welding strength for options
  • Non-fraying and clean edges(depends on the technology)
  • Convenient for directly use or insert moulding
  • High productivity

                   filter mesh tube





Polyester Filter Mesh Datasheet



Fabric
number		 Mesh count Thread
diameter		 Mesh
opening		 Open
surface		 Fabric
thickness		 Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
PES 515/52 14S 36 200 515 52 360 143
PES 470/50 15S 38 200 470 50 380 154
PES 420/40 15T 38 250 420 40 470 240
PES 525/92 16S 41 100 525 92 180 36
PES 425/46 16T 41 200 425 46 380 164
PES 405/53 18S 46 150 405 53 260 104
PES 375/46 18T 46 180 375 46 330 150
PES 375/51 19T 48 150 375 51 260 110
PES 420/71 20S 50 80 420 71 140 33
PES 400/64 20S 50 110 400 64 180 51
PES 350/49 20T 50 150 350 49 260 115
PES 325/47 21T 53 150 325 47 270 121
PES 340/67 24S 61 120 340 67 220 88
PES 270/42 24T 61 150 270 42 280 138
PES 250/46 27T 68 120 250 46 230 100
PES 280/62 28S 71 80 280 62 150 46
PES 240/45 28T 71 120 240 45 230 103
PES 225/43 29T 74 120 225 43 230 107
PES 215/42 30T 76 120 215 42 230 111
PES 230/54 32S 80 80 230 54 150 52
PES 210/45 32T 80 100 210 45 180 82
PES 215/53 34S 86 80 215 53 150 56
PES 195/44 34T 86 100 195 44 180 87
PES 180/42 36T 91 100 180 42 180 92
PES 200/61 39S 99 55 200 61 95 30
PES 190/55 39T 99 64 190 55 115 40
PES 150/36 40T 102 100 150 36 190 103
PES 150/42 43T 110 80 150 42 155 71
PES 160/57 47S 120 55 160 57 96 36
PES 150/50 47T 120 64 150 50 120 48
PES 140/43 47HD 120 71 140 43 130 59
PES 140/47 49S 125 64 140 47 120 50
PES 135/44 49T 125 71 135 44 130 62
PES 144/55 53S 135 45 144 55 76 27
PES 135/51 53S 135 55 135 51 97 40
PES 125/44 53T 135 64 125 44 122 54
PES 117/39 53T 135 71 117 39 132 67
PES 115/46 59S 150 55 115 46 99 45
PES 105/38 59T 150 64 105 38 123 61
PES 100/41 64S 160 55 100 41 100 48
PES 90/33 64T 160 64 90 33 125 66
PES 95/47 72S 180 45 95 47 78 37
PES 85/38 72T 180 55 85 38 102 55
PES 75/33 77T 195 55 75 33 105 58
PES 80/41 80S 200 45 80 41 80 41
PES 85/44 80T 200 48 85 44 86 44
PES 70/40 90M 230 39 70 40 68 34
PES 68/34 90T 230 45 68 34 80 46
PES 65/33 90T 230 48 65 33 82 49
PES 60/36 100T 250 39 60 36 69 38
PES 56/38 110T 280 34 56 38 62 34
PES 52/33 110HD 280 39 52 33 70 42
PES 52/40 120S 300 31 52 40 48 32
PES 48/33 120T 300 34 48 33 63 37
PES 44/28 120HD 300 39 44 28 72 46
PES 47/37 130S 330 31 47 37 50 35
PES 42/30 130T 330 34 42 30 58 40
PES 43/34 140S 350 31 43 34 50 37
PES 36/25 140T 355 34 36 25 62 43
PES 37/30 150S 380 31 37 30 50 40
PES 32/24 150 381 34 32 24 56 43
PES 33/31 165S 420 27 33 31 40 26
PES 32/23 165T 420 31 32 23 50 36
PES 25/16 165 419 34 25 16 66 49
PES 24/18 180 457 27 24 18 43 33
PES 23/17 180 457 31 23 17 56 40
PES 18/18 235x245 597x622 24 18 18 44 32
PES 18/13 200 508 31 18 13 60 48
PES 23/25 200T 500 27 23 25 45 32
PES 15/10 200x215 508x546 31 15 10 59 50





 Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 11

Mesh count (n/cm), (n/in)

The mesh count stands for the number of openings per inch.



Mesh opening (w), (μm)

The mesh opening w is the distance between two adjacent warp or weft thread.



Thread diameter (d),( μm)

The thread diameter is measured on the thread before weaving.



Open area (%)

The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area



































Share Filters Other Fabricated Filter Mesh Parts



filter mesh ribbon nylon filter mesh discs Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 14 polyester mesh tube nylon biopsy bag
Slitted mesh ribbon Mesh Disc Mesh Shape Mesh tube Welded bag





Why Work With Share Filters ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.



We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 17



Factory Capabilities



Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to mesh ribbons, mesh shapes , discs, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.



filter mesh weaving   filter mesh slitting   filter mesh cutting shapes
Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.   Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.   Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials.
Filter mesh shapes   welded mesh tube bag   sewn bag
Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.   Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.   Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.



Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 26 coffee filter Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 28 MESH DISC FILTER
Fuel filter Biopsy bag Air purifier filter Coffee filter  Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Power tool





Packing and Delivery

Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 30



Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

• Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS

• Large quantities is better by sea which is cost economic. Sometimes by air if urgent in need.

• SF EXPRESS usually to Hongkong and Southeast Asia countries.

• Samples are always sent via express commonly.



Nylon Polyester Filter Mesh Tube 5 10 25 50 100 Micron for Cartridge Water Filtration Layer 31



Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!





FAQ



Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.



Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.



Which Port You Ship?

Ningbo port.



Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.



What's Your Payment Term ?

T/T, LC, PayPal, and others.



What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.



What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.



Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.



How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
